The Franck-Hertz Experiment
I think it is safe to say that no one understands quantum mechanics. Do not keep saying to
yourself, if you can possibly avoid it, “But how can it be like that?” because you will go “down the
drain” into a blind alley from which nobody has yet escaped. Nobody knows how it can be like
that.
Richard Feynman
1 Introduction
The discreteness of atomic energy levels was first shown directly in the Franck-Hertz experiment
[McGervey, 1983, or almost any modern physics textbook]. The experiment works by colliding electrons with
a gas in a tube. While the original experiment used mercury gas, the version that we will be doing uses neon
gas instead.
In this experiment electrons are emitted from a cathode and then accelerated through the tube by a
potential, U2 . After being accelerated, the electrons are slowed by a potential drop in the opposite direction,
U3 . Then the electrons are collected at a far end of the tube and the current is measured. In a vacuum tube
that contains no gas the current would rise steadily as the accelerating voltage, U2, is increased. The presence
of the gas changes this behavior because of collisions of the electrons with the gas atoms. At first the current
does rise with the potential, but when the electrons get enough energy they inelastically collide with the gas

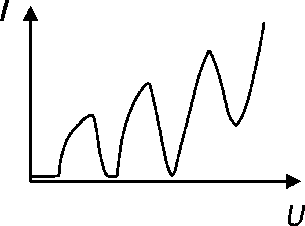

atoms and excite higher energy levels in the gas (see Figure 1. After these collisions the electrons will
have lower energy and due to the opposing potential, U3 they will not make it to the end of
the tube. This will cause the current to decrease to a minimum. After this minimum, as the
potential increases the current will again increase until the electrons get enough energy to excite
the gas twice. This process continues with the electrons repeatedly exciting the gas atoms. The
potential difference between the minima (or maxima) is equivalent to the energy of the excited
level.

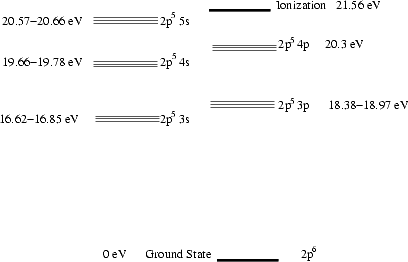

Neon atoms have 10 electrons and a ground state of 1s22s22p6 (see Figure 2). Due to electron spin-related
selection rules, collisions with electrons excite neon atoms from the ground state to the 2p53p
and 2p5 4p states. When falling back toward the ground state by emitting photons the 2p53s
state is also allowed. Recall that you can calculate the wavelength of the photons emitted from
E = .
2 Procedure
Set up the circuit as shown in figure 3, but do not turn any of the power supplies on to begin with. The
Franck-Hertz tube is rather fragile and can be broken by applying incorrect voltages. Have your instructor
check your circuit before any power supplies are switched on.
- First hook a power supply up across the cathode (UH). This power supply is used to heat the
cathode so that electrons are easily ejected; an AC or DC power would work here. Assuming
that you are using a DC power supply, set this power supply to 5 V. Do not put a large voltage
across the cathode as it could melt the cathode.
- Next, hook a DC power supply from the cathode to the control grid (U1). This potential difference
is used to accelerate the electrons across the tube. It can be raised as high as 5 V, but we will
start with this value at 1 V. You can use a DMM to check the voltage across this portion of the
circuit when you adjust it, but you should not need to continually monitor this voltage.
- A high voltage DC power supply will be needed to accelerate the electrons from the control grid to the
anode grid (U2). The voltage from this supply will be varied throughout the lab. Since the voltage
readings on the power supply itself are not very precise, you should connect a DMM to
measure this potential. To test that your circuit is setup correctly, set this voltage at 70
V. You should be able to see three bands of light between the control and anode grids
in the tube, though it easier to see in the dark. You may want to shade the room lights
from the tube or turn off the lights momentarily. If you do not see any light you may try
increasing U1 1 V and then look for the light again. You can repeat this process up to
setting U1 equal to 5 V. If you still do not see the light ask your instructor for assistance.
What color are the bands of light? Once you have seen the light, turn U2 back down to 0
V.
- Now connect the last power supply from the anode to the collector plate (U3). Note that the direction
of this potential difference is opposite that of the other potential drops. The reason for this is
to minimize the current that arrives at the collector grid. Initially set this potential at 5
V.
- Now connect the Pasco electrometer to the BNC connector on the circuit. The electrometer will be used
to (indirectly) measure the current of electrons that arrive at the collector plate. The Pasco electrometer
does not directly measure current, so we will use its voltage measurements (which should be
proportional to the current) as a proxy for the current.
The voltage for the Pasco electrometer can be read directly on the analog scale on the electrometer, but
we will connect it to a PC in order to get more accurate measurements. Start up “Science Workshop” or
“Data Studio” on the PC in order to get the readings. Open up the Frank-Hertz setup from the
program in order to view the electrometer’s measurements.
Note that between each electrometer measurement you will have to hit the zero button on the
electrometer. Failure to do this will lead to spurious results. After hitting the zero button you should
wait at least 5 seconds (and sometimes a minute or more) for the electrometer reading to
stabilize.
Also note that the electrometer voltage readings you get will probably be negative. This is
OK.
- Now that the circuit is setup, you should adjust the collector voltage (U3) in order to get the best
possible experimental curve. To do this you will need to roughly find the first minimum in the current
(electrometer voltage) versus voltage plot for this tube. To do this start with the anode grid
voltage (U2) at roughly 10 V. Increase the U2 and take readings of the electrometer voltage
versus the anode grid voltage until you have found the minimum electrometer voltage.
Once you have found the minimum, set the anode grid voltage back to that reading. Then
vary the control grid voltage (U3) between 0 and 10 V until you minimize the electrometer
voltage.
- Now you should be ready to take the data for the current versus voltage curve. You should take data
for U2 between 0 and 100 V. Do not go any higher than 100 V. While taking the data
concentrate your efforts on determining the maxima and the minima in the curve -- the
regions between the maxima and minima are of less interest. You should be able to find 4
minima under 100 V, but the earlier minima may be easier to determine than the later
ones.
3 Data Analysis
- Plot your electrometer voltage versus anode voltage (U2) data. Find the minima and maxima in
U2 and estimate uncertainties for these values.
- Plot the maxima in U2 versus the excitation (maxima) number -- 1, 2, 3, .... Find the slope of
this line, which should be equal to the excitation energy of neon atoms. Do your results match
the expected to within your uncertainties? Which type of excitations dominate in your plots?
Is the energy consistent with the color of light that is observed? What energy level transition
would be consistent with the color light that you saw?
- Repeat the same analysis as above for the minima.
References
Langley, D., The Franck-Hertz Experiment, 1998.
Leybold Scientific, Franck-Hertz Experiment with Neon, 2003.
McGervey, J. D., Introduction to Modern Physics, Academic Press, Inc., San Diego, California,
1983.
