for *V*_{G} = 0 V, .2 V, .4 V, ...., 1.4 V

big data file, smaller data file, postscript plot, pdf plot

Note that you can make the p-channel JFET characteristic curves look like the common n-channel JFET curves just by rotating the pJFET plot by 180°. In swapping n-channel for p-channel so nJFET pJFET, we've reversed the direction of current flows (so currents are negative -- flowing out of the drain in a pJFET) and the required supply voltage becomes negative for a pJFET.

That is to say that the pJFET is designed for negative power supplies and out-flowing (negative) drain currents -- the opposite of nJFETs.

The behavior of a p-channel junction field-effect transistor (pJFET) is largely controlled
by the voltage at the gate (usually a *positive* voltage).
For the usual drain-source voltage drops (i.e., the __saturation region__:
negative voltages from a few volts down to some breakdown voltage) the drain
current (*I*_{D}) is nearly independent of the drain-source voltage
(*V*_{DS}), and instead
depends on the gate voltage (*V*_{G}).
(This is unusual behavior: usually more voltage
produces to more current, but here the current only increases

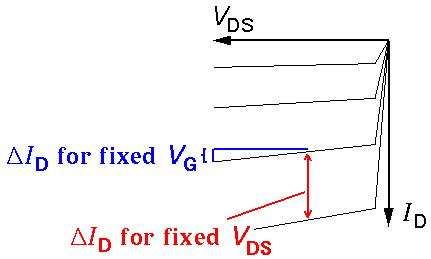

slightly with increasing *V*_{DS}.) The __transconductance__,
i.e., the ratio of the change in drain current to change in gate voltage,
often denoted by *g* or *y*_{fs}, is

*g* = *y*_{fs} =
*I*_{D}/*V*_{G}

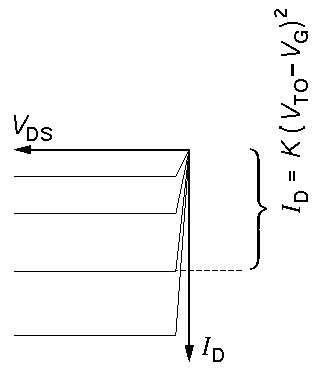

In the simplest approximation the characteristic curves of a nJFET are a set of flat lines:

Each (flat) curve shows that *I*_{D} doesn't change with changing
*V*_{DS}. The different levels show that *I*_{D}
does depend on *V*_{G}. The spacing of the constant-*I*_{D}
curves is usually not constant, instead *I*_{D} depends quadratically
on *V*_{G}:

*I*_{D}=*K*(*V*_{TO}-*V*_{G})^{2}

where the threshold (or pinch-off) voltage *V*_{TO} and *K* are constants.
The maximum (negative) drain current (which occurs at zero-gate voltage, i.e., *V*_{G}=0)
is denoted *I*_{DSS}. As *V*_{G} increases towards
*V*_{TO} the drain current approaches zero.
The value of *K* can be determined from
*I*_{DSS} and *V*_{TO}:

*I*_{DSS} = *K*(*V*_{TO}-0)^{2}

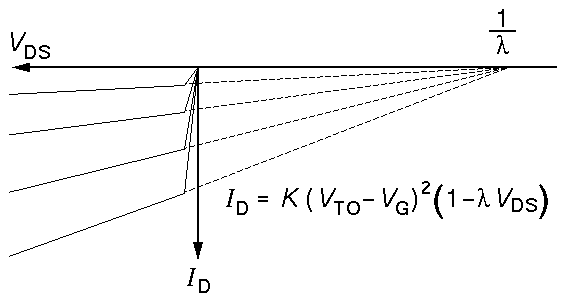

A slightly more complicated approximation takes into account the sloping of the characteristic curves. In bipolar transistors this is due to the Early Voltage, here a very similar equation results from quite different physics: channel length modulation. The equation looks like:

1/*V*_{A} =

So in this model all the
characteristic curves all have a common *x*-axis intercept
at the large positive voltage 1/. (The dashed curves
are far from the active region and in no way represent the actual behavior of
the transistor for positive *V*_{DS}. In fact, the transistor
is not designed to be operated with positive *V*_{DS}.)

(For the above measured 2N5460, 1/ ranges from 140 to 600 V, so the characteristic curves have small but variable slopes.)

The actual relationship between the drain current (*I*_{D})
and the controlling gate voltage (*V*_{G}) and
drain-source voltage drop (*V*_{DS}) is some complicated
function which we can denote:

*I*_{D}(*V*_{G},*V*_{DS})

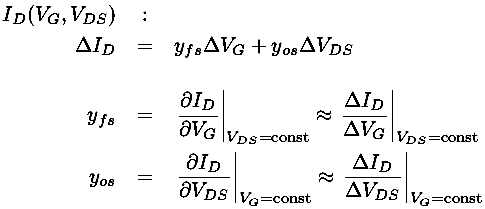

Like any function we can approximate it near a particular point using just the first terms of a Taylors expansion:

Clearly these *admittance (y) parameters* are not constants.
For example *y*_{os} is the slope of a characteristic
curve, which is small for voltages near threshold and increases
for smaller *V*_{G}. (Note that slope on an *I-V*
is basically the inverse of the resistance. Thus 1/*y*_{os}
can be described as the output impedance. A typical value for
1/*y*_{os} would be 100,000 .)

The defining FET parameter -- the transconductance
*g* or *y*_{fs} -- is not at all
constant. To the extent that the drain current depends
quadratically on the gate voltage, the transconductance -- which is the
derivative: d*I*_{D}/d*V*_{G} --
depends linearly on *V*_{G}.

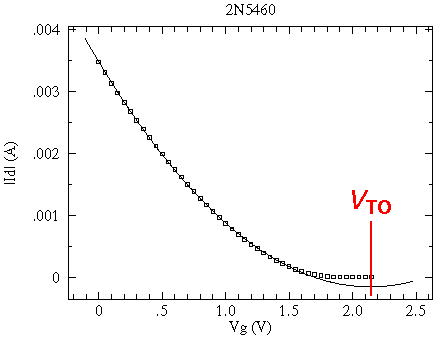

Below is the measured
relationship: |*I*_{D}| vs *V*_{G} for the above 2N5460.
Notice that for this device the quadratic approximation for *I*_{D}
fails a full ½ V below *V*_{TO}.

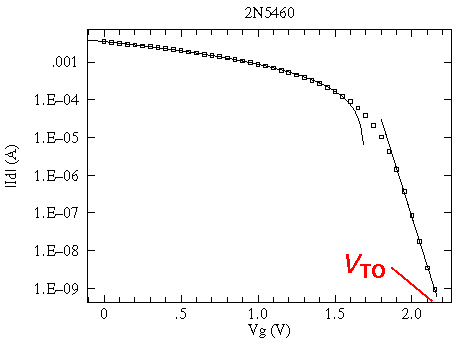

Notice that the quadratic fit to the data would actually
have predicted a sign-change in *I*_{D} (i.e., the minimum for the
parabola lies below the *x*-axis) and that the exponential behavior takes over near
where the quadratic approximation would have predicted zero *I*_{D}
The drain current, of course does not change sign, it merely becomes exponentially small.

The characteristic curves focus on the output of the transistor, but we
can also consider the behavior of the input. In normal operation the
gate is a reversed biased diode, and so *I*_{G} is essentially
zero (which should sound like a huge input resistance).
As a result the outputs have little
effect on the inputs, but if we follow the traditional analysis
the actual functional relationship giving the
gate current (*I*_{G}) from
the gate voltage (*V*_{G}) and
drain-source voltage drop (*V*_{DS}) is some complicated
function which we can denote:

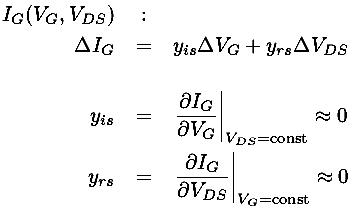

*I*_{G}(*V*_{G},*V*_{DS})

Like any function we can again approximate it near a particular point using just the first terms of Taylors expansion:

The small values of *y*_{rs} and *y*_{is} shows that the input is
largely unaffected by the output and that the input resistance is huge. In fact
this input resistance is so large that the capacitance reactance is almost always
of greater significance.

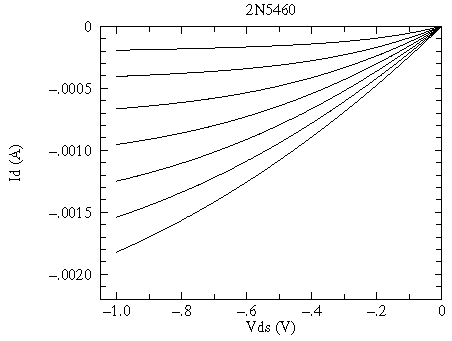

Finally it should be noted that in the small *V*_{DS} region -- before the
saturation region -- the FET characteristic curves look like nearly straight lines through the origin.
*V*_{G} controls the slope of these lines, so the FET acts like a
variable resistor with a voltage (*V*_{G}) control. Here is a plot of this region for the above
2N5460:

The spec sheet reports the following values for the 2N5460:

Characteristics | Symbol | Min | Max | Unit |
---|---|---|---|---|

Forward Transfer Admittance | y_{fs} |
1 | 4 | m mhos |

Output Admittance | y_{os} |
- | 75 | µ mhos |

Zero-Gate Voltage Drain Current | I_{DSS} |
-1 | -5 | mA |

Gate Source Cutoff Voltage | V_{TO} |
0.75 | 6.0 | V |

Input Capacitance | C_{iSS} |
- | 7.0 | pF |
